Springback Compensation
Academic Research / Computational Engineering
Uncertainty-aware iterative tool correction for deep-drawn sheet-metal components.
- Noisy FE simulations per iteration
- 30
- Iterations with α = 0.8
- ≈ 3
- Iterations with α = 0.5
- ≈ 4
Overview
An iterative FE and geometry-processing workflow that converts springback deviations into a corrected tool surface for the next forming simulation.
Semester thesis using FE ensembles, geometry reconstruction, and normal-direction surface compensation.
After a deep-drawn sheet is released from its tooling, elastic recovery changes the final geometry. For aluminium parts, this springback can create deviations large enough to prevent assembly.
The thesis investigated whether an ensemble of noisy FE results could drive a stable correction loop: reconstruct the deformed part, measure deviations along target-surface normals, and modify the tool in the opposite direction.
The problem
Directly compensating one simulated surface can amplify local noise and produce unstable tooling. The workflow therefore needed consistent geometry correspondence, robust ensemble aggregation, and safeguards against over-compensation near convergence.
Why this was difficult
Geometry correspondence
Every simulated STL had to be rigidly aligned, trimmed, sampled, and reconstructed onto a comparable surface representation.
Uncertain simulation response
Thirty noisy FE results per iteration produced a distribution of possible compensated positions rather than one deterministic answer.
Convergence versus stability
Aggressive correction reduces large initial errors quickly but can bend the tool excessively when residual errors become small.
My contribution
Developed the research pipeline for mesh alignment, structured surface reconstruction, ensemble aggregation, normal-deviation calculation, localized compensation weighting, and STEP export for iterative AutoForm evaluation.

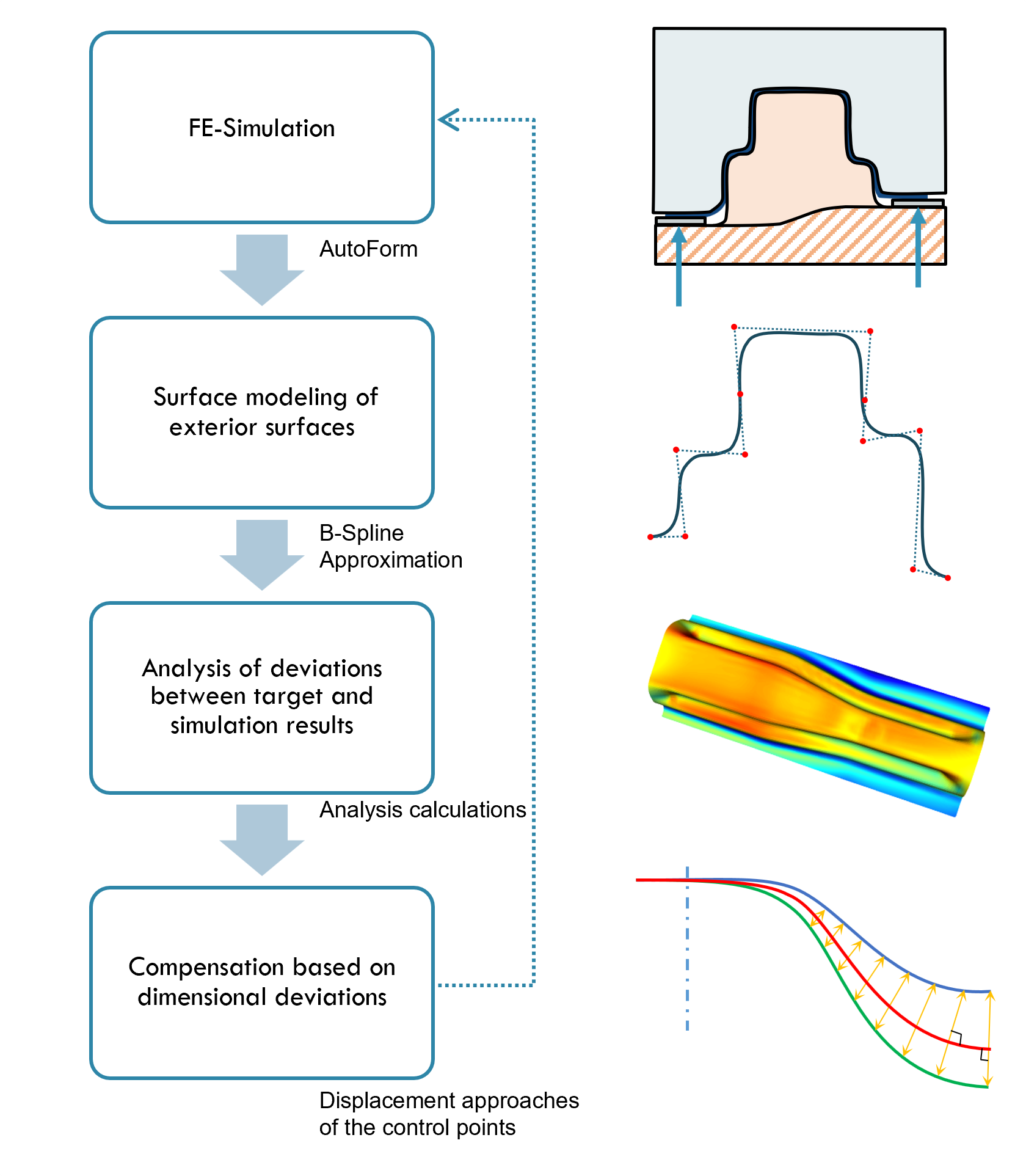

System workflow
- 01Align the FE ensemble
Register 30 springback meshes to the target using the part-bottom reference region.
- 02Reconstruct comparable surfaces
Trim the flange and approximate each result with a B-spline surface using shared parameterization.
- 03Reduce uncertainty
Aggregate corresponding control points using mean, median, or maximum target deviation.
- 04Calculate compensation
Project deviations along target normals and apply global alpha and local beta weighting.
- 05Generate and evaluate the next tool
Displace control points inversely, export STEP geometry, and run the next AutoForm iteration.
Technical decisions
Measure deviations along target-surface normals
geometric metric- Problem
- Raw nearest-point distances do not preserve a stable correction direction on curved sheet geometry.
- Decision
- Evaluate signed deviation along target normals and use that direction for inverse tool displacement.
- Result
- Compensation remains connected to the nominal surface geometry and local forming direction.
Aggregate an ensemble before compensating
uncertainty handling- Problem
- One noisy FE result can push control points toward a non-representative tool correction.
- Decision
- Compare arithmetic mean, coordinate-wise median, and maximum-deviation reductions over 30 simulations.
- Result
- The study exposes the trade-off between robust convergence and aggressive early correction.
Treat the maximum strategy as phase-dependent
stability control- Problem
- The farthest simulated point reduces large deviations quickly but can over-compensate close to convergence.
- Decision
- Analyze aggressive maximum reduction separately from stable mean/median behavior and propose switching strategy by iteration phase.
- Result
- Failure behavior becomes part of the engineering conclusion rather than being hidden by one aggregate score.
Results
These results come from separate experiments and model configurations. They should be interpreted individually, not as the performance of one combined final model.
- Variant
- α = 0.8
- Evaluation
- Included aluminium deep-drawing case
- Variant
- α = 0.5
- Evaluation
- Included aluminium deep-drawing case
- Evaluation
- 30 noisy simulations per iteration
These observations describe the included thesis case study and are not a general guarantee for other materials, meshes, geometries, or AutoForm settings.
Lessons & takeaways
- The fastest correction strategy is not necessarily the most stable strategy near convergence.
- Reliable geometry compensation depends on correspondence and reference alignment before deviation statistics are meaningful.
- A phase-dependent strategy—aggressive early, robust late—is a promising extension of the observed behavior.
Limitations
- AutoForm is required to reproduce the complete FE loop; the repository provides code and reference data around that external solver workflow.
- The reported convergence behavior is specific to the documented aluminium demonstrator and study configuration.
